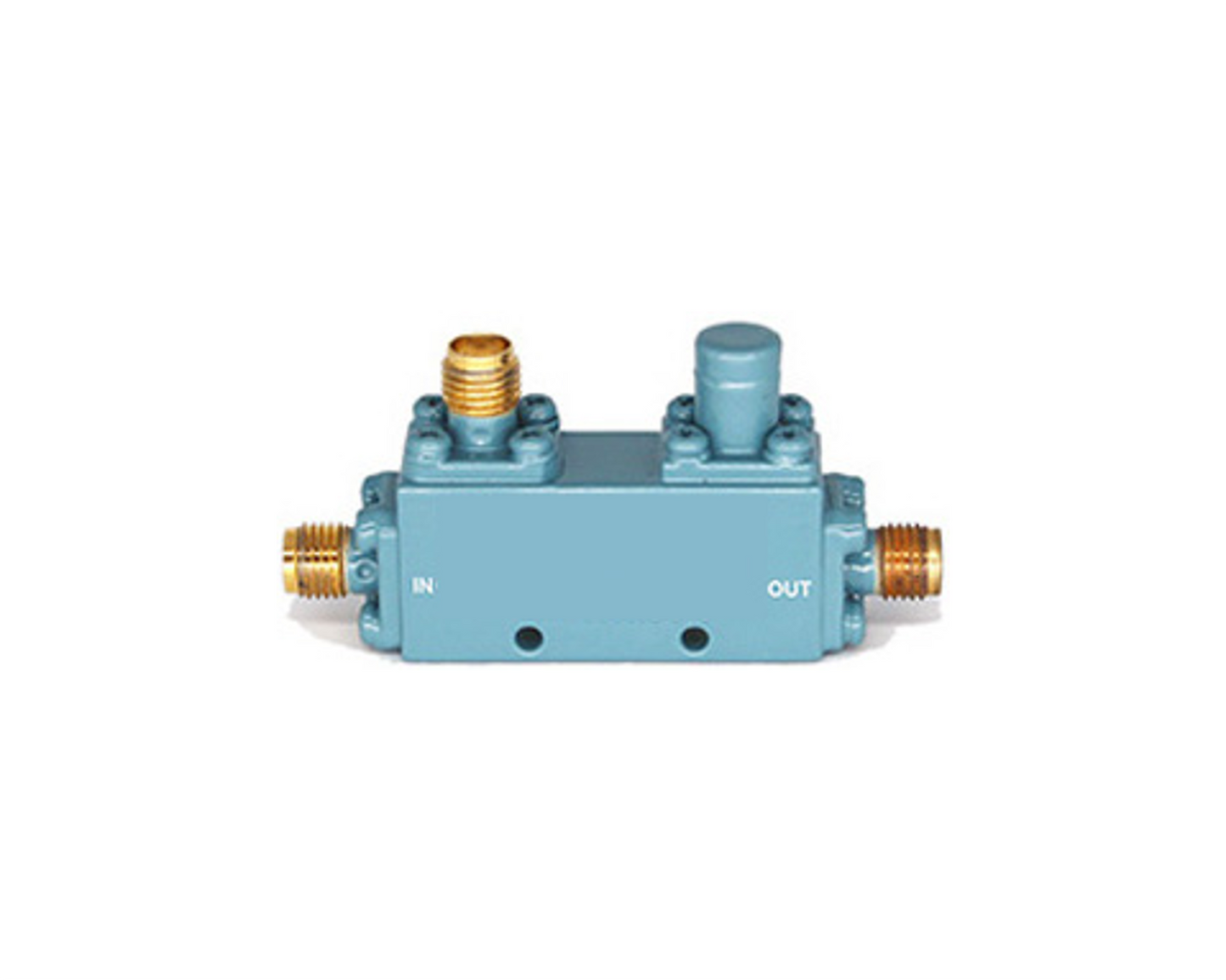

Directional Coupler
Directional Coupler
Note: All products can be customized, please add the item to the quote and highlight the required specifications in the quote request form.
Couldn't load pickup availability
Price does not include shipping and import tariff. Tax, shipping, and import tariff will be added to the final quote based on the shipping address.
A Coupler is a general-purpose RF device that can be used for signal distribution and mixing to achieve power detection, detection, transmission, and frequency sweep testing of reflections.
- Low insertion loss
- Excellent out-of-band suppression
Specifications:
- Connectors: SMA-F
- Ave Power: 50 W
- Operating Temperature: -45 ~ +85 °C
- VSWR: ≤ 1.5
- Insertion Loss (dB): 1dB
Model |
Coupling (dB) |
Freq Coverage |
ATX-ML-COP-10D-046-12D |
10 ± 1.2 |
Up to 6GHz |
ATX-ML-COP-20D-046-12D |
20 ± 1.2 |
Up to 6GHz |
ATX-ML-COP-10D-068-12D |
10 ± 1.2 |
Up to 8GHz |
ATX-ML-COP-20D-068-12D |
20 ± 1.2 |
Up to 8GHz |
