ATxTel C500 Low Loss Amplitude Stable RF Cable: ATX-ML-CLB-C500-SMA-SMA
|

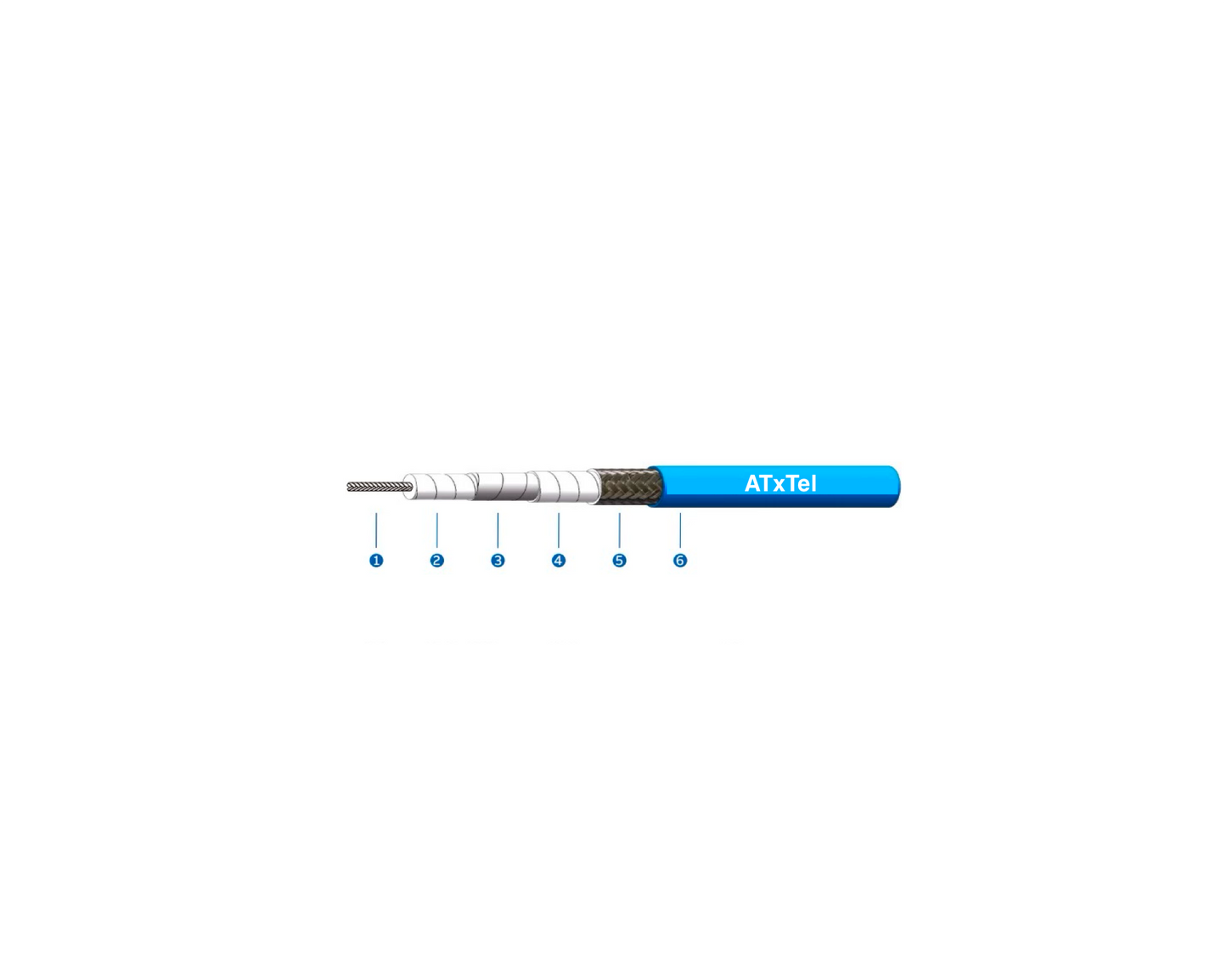

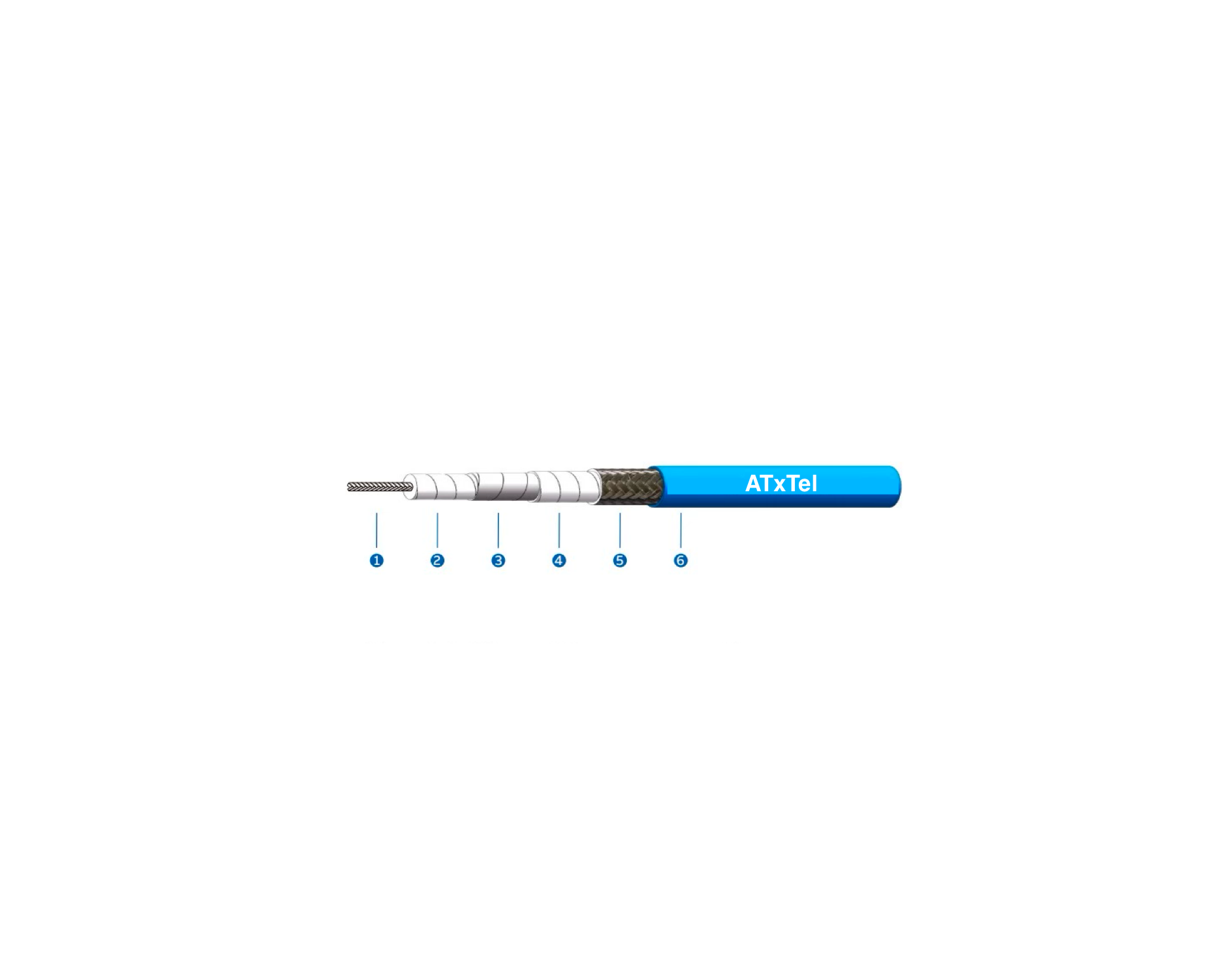

Construction Materials |
|||
|
|
Material |
Diameter (mm) |
 |
|
1 |
Stranded silver-plated copper |
1.44 |
|
|
2 |
Low-density PTFE |
3.80 |
|
|
3 |
Silver-plated copper tape wrapping |
4.00 |
|
|
4 |
Jacket (4.95mm) |
4.32 |
|
|
5 |
Low-density PTFE |
4.63 |
|
|
6 |
Blue FEP |
5.05 |
|
|
Electrical Specifications |
|
|
Cable impedance |
50 ohm |
|
Shielding efficiency |
90 dB |
|
Velocity of Propagation |
82% |
|
Amplitude stability |
+/- 0.1 dB |
|
Phase stability |
+/- 5° |
|
Operating frequency |
26.5 GHz |
|
Mechanical & Environmental Specifications |
|
|
Bend radius (min) |
20.00 mm |
|
Bending radius, repeated bending |
50.00 mm |
|
Temperature range |
-55 ~ +165℃ |
|
Attenuation Typical Value (25°C & VSWR = 1.0) |
|
|
100MHz |
0.08 dB/m |
|
400 MHz |
0.15 dB/m |
|
1000 MHz |
0.27 dB/m |
|
3000 MHz |
0.48 dB/m |
|
6000 MHz |
0.70 dB/m |
|
8500 MHz |
0.84 dB/m |
|
12400 MHz |
1.03 dB/m |
|
18000 MHz |
1.27 dB/m |
|
26500 MHz |
1.59 dB/m |
Note: Minimum order quantity > 10
