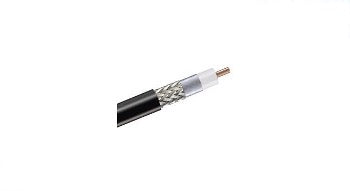

LMR series - ATX240 Low Loss High Power Braided Coaxial RF Cable
LMR series - ATX240 Low Loss High Power Braided Coaxial RF Cable
Regular price
$26.00
Regular price
Sale price
$26.00
Unit price
per
Note: All products can be customized, please add the item to the quote and highlight the required specifications in the quote request form.
Couldn't load pickup availability
Price does not include shipping and import tariff. Tax, shipping, and import tariff will be added to the final quote based on the shipping address.
Construction Materials |
|||
Jacket Color | Black | ![]() |
|
Jacket Material | Non-halogenated PE | ||
Braid Material | Tinned copper | ||
Shield Tape Material | Aluminum | ||
Dielectric Material | Foam PE | ||
Inner Conductor Material | Copper wire | ||
Dimensions |
|||
Diameter Over Dielectric | 3.810 mm | 0.150 in | ||
Diameter Over Jacket | 6.100 mm | 0.240 in | ||
Inner Conductor OD | 1.420 mm | 0.056 in | ||
Nominal Size | 6.100 mm | 0.240 in | ||
Outer Conductor OD | 4.520 mm | 0.178 in | ||
Electrical Specifications |
|||
Cable Impedance | 50 ohm | ||
Capacitance | 80 pF/m | 24 pF/ft | ||
dc Resistance, Inner Conductor | 10.830 ohms/km | 3.300 ohms/kft | ||
dc Resistance, Outer Conductor | 12.760 ohms/km | 3.890 ohms/kft | ||
dc Test Voltage | 2000 V | ||
Jacket Spark Test Voltage (rms) | 5000 V | ||
Maximum Frequency | 31.00 GHz | ||
Operating Frequency Band | 30 – 6000 MHz | ||
Peak Power | 5.6 kW | ||
Shielding Effectiveness | >90 dB | ||
Velocity | 0.83 | ||
Mechanical Specifications |
|||
Bending Moment | 0.3 N-m | 0.3 ft lb | ||
Flat Plate Crush Strength | 0.4 kg/mm | 20.0 lb/in | ||
Minimum Bend Radius, Single Bend | 19.10 mm | 0.75 in | ||
Tensile Strength | 36 kg | 80 lb | ||
Attenuation vs. Frequency (typical) - Consider additional 1-2 dB for SMA connectors |
|||
Frequency |
Attenuation (dB/100 m) |
Attenuation (dB/100 ft) |
|
30 MHz | 4.9 | 1.5 | |
50 MHz | 6.2 | 1.9 | |
150 MHz | 10.2 | 3.1 | |
220 MHz | 12.5 | 3.8 | |
450 MHz | 17.4 | 5.3 | |
900 MHz | 24.9 | 7.6 | |
1500 MHz | 32.8 | 10 | |
1800 MHz | 36.4 | 11.1 | |
2000 MHz | 38.7 | 11.8 | |
2400 MHz | 42.98 | 13.1 | |
2500 MHz | 44 | 13.4 | |
3000 MHz | 48.9 | 14.9 | |
4000 MHz | 57.74 | 17.6 | |
4500 MHz | 62.01 | 18.9 | |
5000 MHz | 66.27 | 20.2 | |
5200 MHz | 67.91 | 20.7 | |
5500 MHz | 70.21 | 21.4 | |
5800 MHz | 72.51 | 22.1 | |
6000 MHz | 73.82 | 22.5 |
