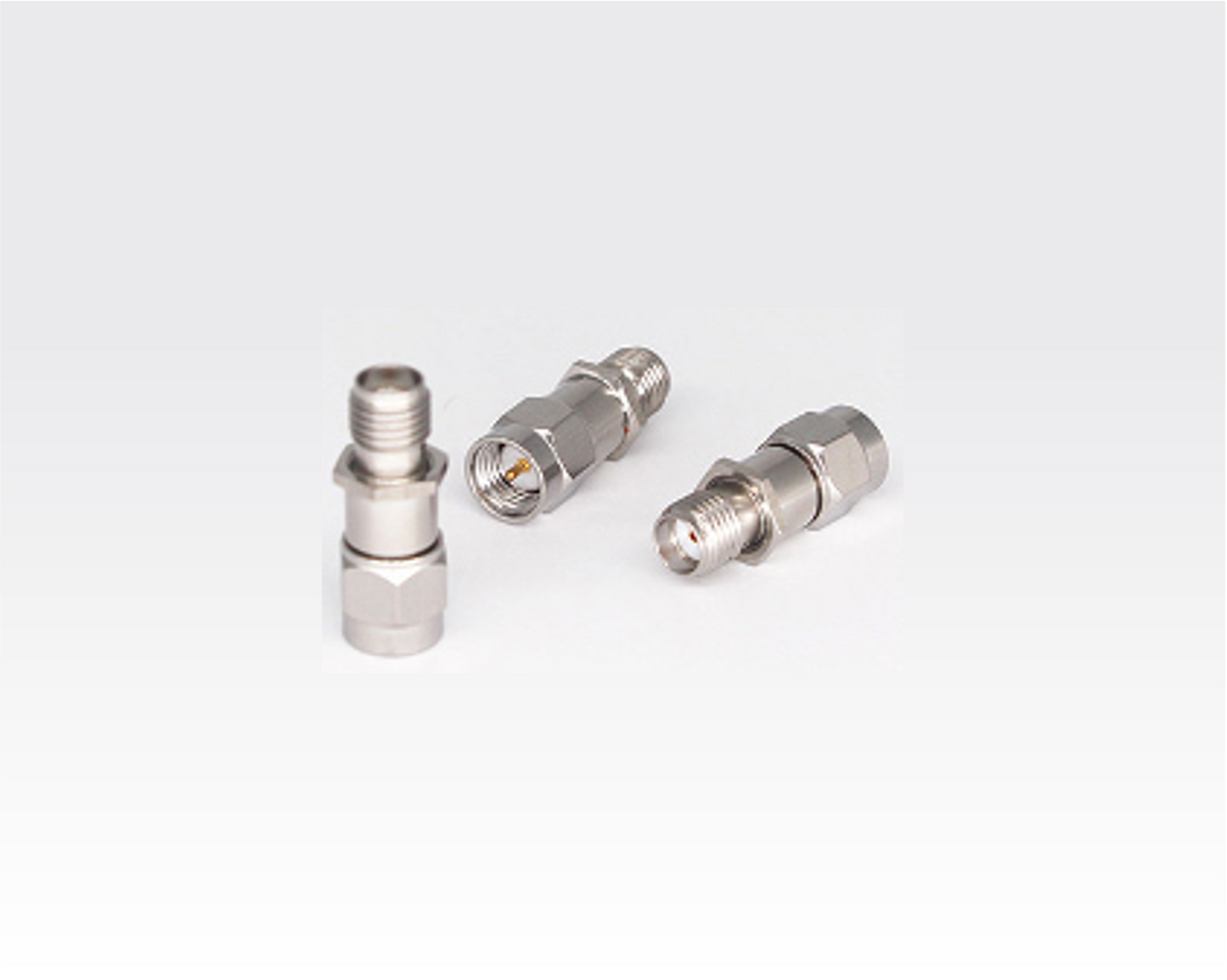

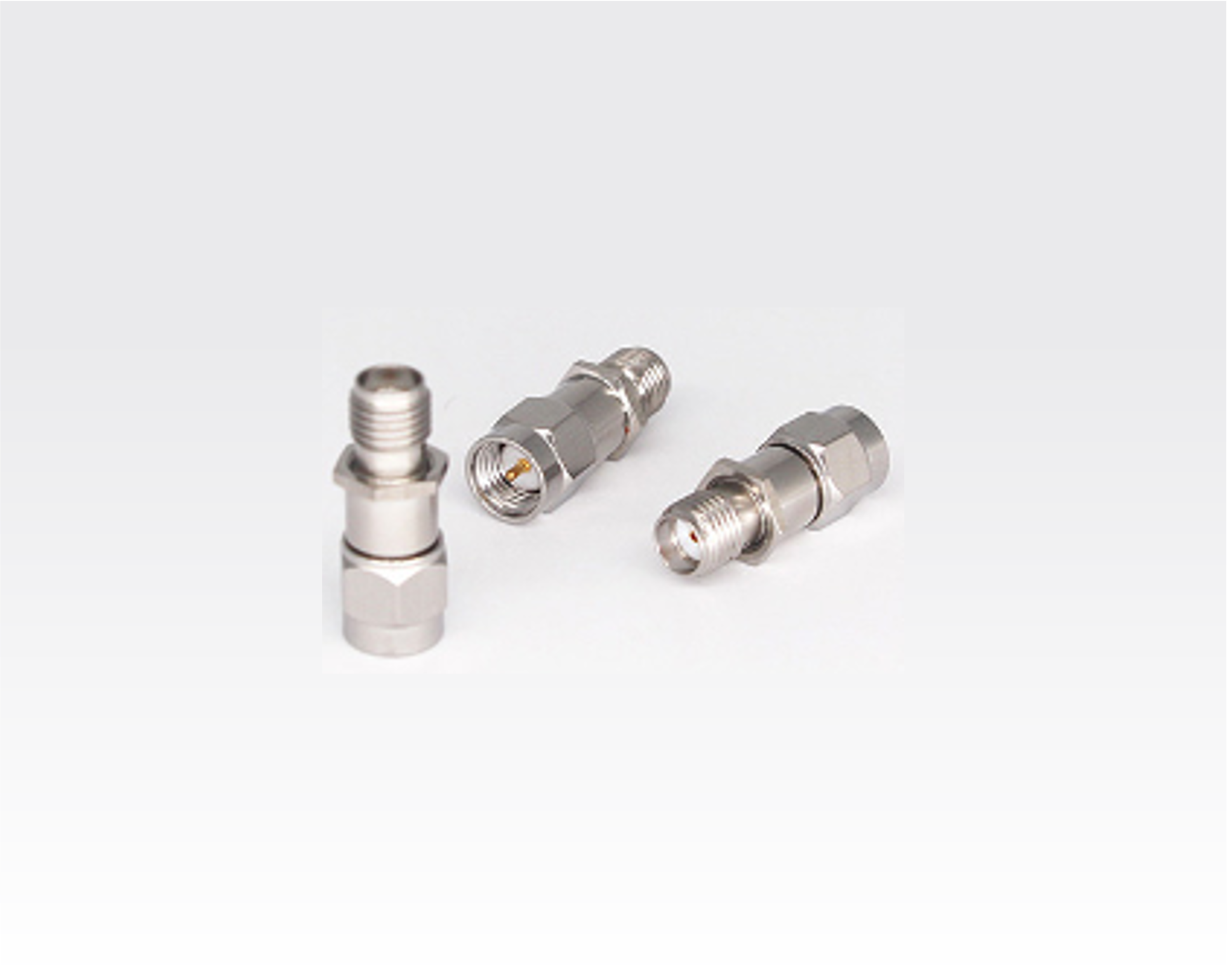

Fixed RF Attenuator <18GHz
Fixed RF Attenuator <18GHz
Regular price
$18.00
Regular price
Sale price
$18.00
Unit price
per
Note: All products can be customized, please add the item to the quote and highlight the required specifications in the quote request form.
Couldn't load pickup availability
Price does not include shipping and import tariff. Tax, shipping, and import tariff will be added to the final quote based on the shipping address.
Body Material: Stainless Steel 303F/Passivated
Conductor Material: Beryllium Bronze/Gold Plated
Durability: 500 Cycles
Features:
- Low standing wave
- High attenuation accuracy
- High indicator stability
Specifications:
- Connectors: SMA-M <=> SMA-F
- Frequency: DC ~ 18 GHz
- Ave Power: 2 W
- Impedance: 50 Ω
- VSWR: ≤ 1.30
- Operating Temperature: -40 ~ +125 °C
|
Model |
Attenuation (dB) |
Accuracy (dB) |
|
ATX-ML-ATT-1DB-SMA-MF |
1 |
+/-0.5 |
|
ATX-ML-ATT-3DB-SMA-MF |
3 |
+/-0.5 |
|
ATX-ML-ATT-6DB-SMA-MF |
6 |
+/-0.5 |
|
ATX-ML-ATT-10DB-SMA-MF |
10 |
+/-0.5 |
|
ATX-ML-ATT-20DB-SMA-MF |
20 |
+/-0.75 |
Note: Minimum order quantity > 10
